Workflow Overview

Managing workflows represents the primary functionality of the Qorus system. All information pertaining to workflows is stored in the Qorus database, from workflow metadata, to workflow logic, to the actual workflow data and states.

Workflow Metadata

Qorus workflows are made up of several objects. Workflow metadata is stored in the WORKFLOWS table, and the parent table for workflow order data instance information is the WORKFLOW_INSTANCE table.

Important workflow attributes are depicted in the following graphic.

Workflow Metadata Diagram

Workflow attributes are described in more detailed in the following table.

Workflow Attributes (table: WORKFLOWS)

Attribute Mand? Description
workflowid Y The unique ID of the workflow; no two workflows can have the same ID (primary key for the table)
name Y The workflow's name
version Y The workflow's version
patch N A string giving the patchlevel of the workflow's configuration. Note that the patch string is not used to differentiate different versions of this object. Objects have unique names and versions, but the patch string is used to track updated configurations of an object where updating the version number is not desirable.
description Y The description of the workflow
autostart Y The number of workflow execution instances to be started automatically
max_instances Y The maximum number of workflow execution instances that can be started concurrently (must be >= autostart)
errorfunction_instanceid N This attribute gives the ID of a function to be used as the error function. The error function returns a hash describing errors the workflow can raise; foreign key to FUNCTION_INSTANCE
attach_func_instanceid N This function will be executed each time Qorus starts to work on (i.e. "attaches to") a workflow order data instance; foreign key to FUNCTION_INSTANCE
detach_func_instanceid N This function that will be executed each time Qorus stops working on (i.e. "detaches from" or "releases") a workflow order data instance; foreign key to FUNCTION_INSTANCE
onetimeinit_func_instanceid N This function will be executed once each time a workflow execution instance starts; foreign key to FUNCTION_INSTANCE
errhandler_func_instanceid N This function will be executed when an error is raised; foreign key to FUNCTION_INSTANCE
deprecated N This flag indicates whether or not the workflow will be displayed in the web UI and can be started
Steps Y A list of steps and step dependencies; found in the table: WORKFLOW_STEPS
Segments Y A list of segments and segment dependencies, found in tables: SEGMENT_DEPENDENCIES, SEGMENT_STEPS
Tags N A list of user-defined tags for the workflow, stored in the WORKFLOW_TAGS table
Library Objects N A set of functions, classes, and constants that will be loaded into the workflow's program space; defined in table: WORKFLOW_LIB
Keys N A set of keys for searching workflow order data instances. Only key names in this list can be used to tag workflow order data instances for searching. Found in table: WORKFLOW_KEYS
Options N A set of valid options and option values for a workflow; defined in table: WORKFLOW_OPTIONS
See also
Workflow Instance Data Description for information about workflow instances, which are instantiations of the metadata described above

Step Metadata

Each workflow is made up of one or more steps and the step dependencies.

Step metadata can be graphically depicted as follows.

Step Metadata Diagram

Steps have attributes as defined in the following table.

Step Attributes (Table: STEPS)

Attribute Mand? Description
stepid Y The unique ID of the step; no two steps can have the same ID (also this is the primary key for the table)
steptype Y see Step Types for valid step types
name Y The step's name
version Y The step's version; the name and version uniquely identify the step and correspond to one step ID
patch N A string giving the patchlevel of the step's configuration. Note that the patch string is not used to differentiate different versions of this object. Objects have unique names and versions, but the patch string is used to track updated configurations of an object where updating the version number is not desirable.
arraytype Y Defines the step as an array step or not; see Step Array Attribute Values for valid values
step_classid N Either this column or stepfunction_instanceid must be populated; this column must be non-NULL for newer class-based steps; foreign key to CLASSES
stepfunction_instanceid N For old-style function-based steps, the primary logic for the step; for newer class-based steps, this column must be NULL; foreign key to FUNCTION_INSTANCE
validationfunction_instanceid N For old-style function-based steps, a function that will be executed when the step is recovered, before the primary step code is executed; can be used with all step types except steps of type OMQ::ExecSubWorkflow (subworkflow steps) and OMQ::ExecEvent (workflow synchronization event steps); for newer class-based steps, this column must be NULL; foreign key to FUNCTION_INSTANCE
endfunction_instanceid Y/N* * For old-style function-based steps, mandatory for steps of type OMQ::ExecAsync (asynchronous steps); must not be present for other step types; for newer class-based steps, this column must be NULL; foreign key to FUNCTION_INSTANCE
arrayfunction_instanceid Y/N* * For old-style function-based steps, mandatory for array type OMQ::ArraySeries, must not be present for array type OMQ::ArrayNone; for newer class-based steps, this column must be NULL; foreign key to FUNCTION_INSTANCE
queueid Y/N* * Mandatory for steps of type OMQ::ExecAsync (asynchronous steps); must not be present for other step types; foreign key to QUEUES
workflow_event_typeid Y/N* * Mandatory for steps of type OMQ::ExecEvent (workflow synchronization event steps), must not be present for any other step type; foreign key to WORKFLOW_EVENT_TYPES
Tags N A list of user-defined tags for the step, stored in the STEP_TAGS table
See also
Step Instance Data Description for information about step instances, which are instantiations of the metadata described above

Segment Metadata

Segments are a groups of steps separated by an asynchronous (type OMQ::ExecAsync), a workflow synchronization event step (type OMQ::ExecEvent), or a subworkflow step (type OMQ::ExecSubWorkflow). If a workflow has no asynchronous steps, no synchronization event steps, and no subworkflow steps, then the workflow will have only one segment (with segment ID 0).

Segments are executed semi-independently of one another; each segment has it's own resources and threads dedicated to processing only that segment. In this way, the Qorus Integration Engine® can pipeline data processing in the most efficient way possible while providing a very easy-to-use system construct to the programmer.

Segments have attributes as defined in the following table.

Segment Attributes

Attribute Mand? Description
workflowid Y The ID of the workflow the segment belongs to; foreign key to WORKFLOWS
segmentid Y The ID of the segment, unique within the workflow only. Segment IDs in each workflow start with 0.
Steps Y List of steps in the segment with their dependencies, defined in SEGMENT_STEPS
See also
Segment Instance Data Description for information about segment instances, which are instantiations of the metadata described above

Workflow Metadata Cache

Workflow metadata (workflow configuration information) is loaded on demand into Qorus' workflow cache. If a workflow is updated, or dependent functions, etc are updated in the database, then, in order for the changes to take effect, the cached version of the workflow must be deleted so that the new version will be automatically loaded into Qorus' workflow cache.

The cached version of a workflow can be deleted with system REST APIs like PUT /api/latest/workflows/{id_or_name}?action=reset or the omq.system.reset-workflow() RPC API method.

When a cached workflow configuration is deleted, the system event WORKFLOW_CACHE_RESET is raised.

Note
Instances of workflows running in NORMAL (OMQ::WM_Normal) or RECOVERY (OMQ::WM_Recovery) mode will be automatically updated with the newer configuration when the cached version is deleted (for example, by calling PUT /api/latest/workflows?action=resetAll or omq.system.reset-all-workflows()). When this happens, the workflow execution instance does a partial stop, refreshes the configuration, and then restarts. It is not necessary to stop and start a workflow execution instance manually when workflow configurations are updated.

Workflow Order Data Instances

Workflow Primary Order Instance Data

Workflow order data instances represent order data to be processed by workflows; they are instantiations of Workflow Metadata, and they have attributes as defined in the following table.

Workflow Order Data Instance Attributes (tables: WORKFLOW_INSTANCE and ORDER_INSTANCE)

Attribute Description
workflow_instance.workflow_instanceid The unique ID of the workflow order data instance; no two workflow order data instances can have the same ID (this is the primary key for both these tables)
workflow_instance.workflowid Identifies the workflow the order data belongs to or is processed by.
workflow_instance.workflowstatus Indicates the status of the workflow order data instance. See Workflow, Segment, and Step Status Descriptions for more information
workflow_instance.custom_status This is an optional user status code that can provide more information about the status to operations personnel
workflow_instance.status_sessionid When the workflow order data instance is being processed, this value will be set to the session ID of the Qorus application instance session processing it.
workflow_instance.scheduled The earliest date and time the order can start processing; this date/time value is only used when the order's status is OMQ::StatReady
workflow_instance.priority The priority for the order; lower numbers equal higher priorities; priority numbers may be from 0 (the highest priority) to 999 (the lowest priority)
workflow_instance.started The time and date the workflow order data instance was initially processed.
workflow_instance.completed The time and date processing was completed for the workflow order data instance.
workflow_instance.parent_workflow_instanceid For subworkflows, this points to the parent workflow order data instance ID.
workflow_instance.synchronous For order data being processed synchronously, this flag will be set to 1 (= true).
workflow_instance.business_error Flag indicating if the workflow order data instance has an OMQ::StatError status due to a business error (if not set, the error status is due to a technical error). The interpretation of this flag depends on the order being processed, however normally the business error flag is set when the input data are inconsistent with the order to be processed (for example, the input data fail business validation rules)
order_instance.external_order_instanceid An optional external identifier for the workflow order data instance
order_instance.staticdata The initial order data – this cannot be changed by workflow execution instances that process it
order_instance.dynamicdata This is persistent data associated with the workflow order data instance. Any data stored here will remain until deleted from the DB.
User Keys Optional key-value pairs attached to a workflow order data instanstaticce to be used in searching for the data

Sensitive Data

Qorus has been designed to handle workflow order sensitive data with special APIs, encrypted storage, and carefully audited processing to avoid logging such data by the system itself and to ensure the security of such data from unauthorized access or inadvertent disclosure.

Workflow sensitive data can only be submitted with a new workflow order over a secure network interface (i.e. using an HTTPS listener); it's not possible to submit sensitive data over an unencrypted listener.

Workflow order sensitive data is stored separately for each data subject against the workflow order using two identifiers (in addition to the workflow_instanceid designating the workflow order); within the order, each data subject's sensitive data is identified with the following keys:

  • skey: the sensitive data key type (not treated as sensitive itself; ex: "social_insurance_nr")
  • svalue: the sensitive data key value, which is also treated as sensitive itself

The value of skey must be decided in advance when designing an interface that will process sensitive data. This value is meant to describe the type of value stored in svalue. For example, if the sensitive data identifier is a social insurance number, then skey might be "social_insurance_nr" and svalue will be the social insurance number for the data subject (the natural person whose data are being processed).

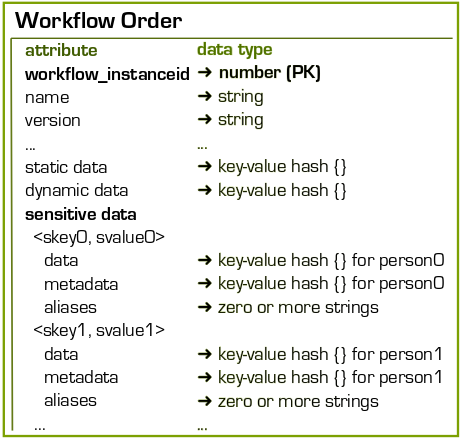

The following image gives an overview of how sensitive data is stored against a workflow order:

Qorus Integration Engine® Workflow Order Sensitive Data

In another example, an interface might identify data subjects with their tax number, so skey might be "tax_id", and svalue will be the tax number of the data subject.

The following image provides an overview of a concrete example of sensitive data stored against a workflow order storing sensitive data for at least two data subjects with tax_ids "984.302192.AF" and "739.323.714.BR":

Qorus Integration Engine® Workflow Order Sensitive Data Example

In the above example, the sensitive key values ("984.302192.AF" and "739.323.714.BR") are encrypted when stored, additionally the sensitive data and metadata hashes for each data subject are also stored encrypted in the system database.

For each set of personal data stored in a workflow order, the two values skey and svalue identify sensitive data for a data subject and must be used for external queries or manipulation of sensitive data.

This data can be queried, updated, and deleted separately for each workflow order or for each data subject.

If another identifier for the customer is used, such as an internal account number (which might be used to ensure a common identifier for all sensitive data stored by an organization), then the skey value might be "account_nr", and svalue will be the organization's account number. In any case, svalue values will be treated as sensitive themselves, therefore they will not be logged in decoded form and also can only be sent or received over encrypted network links (at least when the system is aware that sensitive data is being sent or received as a part of system APIs designed to support this implementation).

Sensitive data APIs for workflows also support the possibility of creating internal aliases for sensitive data key/value pairs to allow sensitive data to be matched to cleartext workflow order data (such as Workflow Static Order Data or Workflow Dynamic Order Data); sensitive data aliases are not considered sensitive themselves and therefore should not be created using sensitive identifiers that can be used to determine the identity of the data subject.

Sensitive Data REST APIs

The following REST APIs support sensitive data processing:

Note
  • sensitive data can only be created, retrieved, updated, and deleted over an encrypted (i.e. HTTPS) listener.
  • external sensitive data APIs work across the system schema and any archiving schema transparently
Warning
use of the following REST APIs can log raw data and therefore can result in sensitive data being logged in the HTTP log file: Use those REST APIs with care.

Sensitive Data RBAC Permissions

The following RBAC permissions allow operations on sensitive data to be restricted:

Only the system superuser role is allowed to create, retrieve, update, and delete sensitive data by default. Other roles must be updated with the appropriate permissions before they can access sensitive data from external interfaces.

Sensitive Data Options

The following system options support sensitive data processing:

If either of the sensitive data purge options is False, then sensitive data should be purged periodically from the system and archiving schemas using the qorus-sensitive-data job.

Note
Once workflow order sensitive data is made available in raw form for internal processing in Qorus, programmers must ensure that this data is not processed over insecure network connections or logged in insecure log files. For this reason Qore Technologies recommends that any interfaces handling sensitive data be subjected to security audits in the design and test phases at least.
See also

Workflow Order Notes

Notes can be added to a workflow order through internal and external APIs. These notes are stored in the ORDER_INSTANCE_NOTES table.

Notes are meant to be records of operational information about the processing or troubleshooting of an order. Notes can also be created in the web UI and are displayed there with the order instance data.

The following external APIs are related to notes:

The following internal APIs are related to notes:

Workflow Order Segment Instances

As an order is being processed, it will have one or more segment rows created for it. This information is stored in the SEGMENT_INSTANCE table, which is an instantiation of Segment Metadata.

Segment Instance Attributes (table: SEGMENT_INSTANCE)

Attribute Description
workflow_instanceid The workflow order data instance that the segment instance belongs to
segmentid The metadata ID of the segment, unique in the workflow order data instance; the first segment has segmentid 0
segmentstatus Segments can have any of the statuses in Workflow, Segment, and Step Status Descriptions except OMQ::StatIncomplete, OMQ::StatCanceled, and OMQ::StatBlocked
custom_status Segments can have an optional user status code that can provide more information about the status to operations personnel
retry_trigger When a segment has status OMQ::StatRetry or OMQ::StatAsyncWaiting, it can have a specific retry time set so that the retry occurs at this certain time, overriding system options qorus.recover_delay or qorus.async_delay

Workflow Order Data Retry Trigger

Note that the retry_trigger value is set for a segment instance when a step requests a specific retry time; a specific retry time can be set by a step any time the step gets an OMQ::StatRetry or OMQ::StatAsyncWaiting status. In this case, the earliest retry time will take effect for the segment instance.

Workflow Order Step Instances

Each step that is executed for an order has a row in the STEP_INSTANCE table associated with it, which is an instantiation of Step Metadata.

Step Instance Attributes (table: STEP_INSTANCE)

Attribute Description
workflow_instanceid The workflow order data instance that the step instance belongs to (see Workflow Primary Order Instance Data)
stepid The metadata step ID for the step (see Step Metadata)
ind The array step index; the first element is always 0. Non-array steps will only have one STEP_INSTANCE entry for their stepid and this attribute will always set to 0
stepstatus Steps can have any of the statuses in Workflow, Segment, and Step Status Descriptions except OMQ::StatReady, OMQ::StatIncomplete, OMQ::StatCanceled, and OMQ::StatBlocked
custom_status Steps can have an optional user status code that can provide more information about the status to operations personnel
skip This flag is set on steps that were skipped

Additional tables of interest are:

  • QUEUE_DATA: where asynchronous messages are stored to be delivered to back-end code for asynchronous steps
  • STEP_INSTANCE_EVENTS: where the event type and event key information is stored for steps pending on a workflow synchronization event
  • SUBWORKFLOW_INSTANCE: where the information is stored linking a step in a parent workflow to a child or sub workflow
  • WORKFLOW_EVENTS: where workflow events are stored, holding the key value and posted status

Workflow Execution

This section describes workflow execution instance processing.

Startup and Execution

The workflow startup procedures (SQL select statements) are split into batches due the performance reasons. It means that all steps described below are performend 1..N times depending on amount of data in the system database schema.

Size of these batches can be set by options:


Step 1: Open Log Files

When the first execution instance of a workflow starts, the workflow's shared log files are opened (and created if necessary) in append mode. Note that all workflow execution instances of the same type will normally share the same log file (depending on the file name mask). See System, Service, Workflow, and Job Logging for more information about logging.


Step 2: Execute One-Time Initialization

When a workflow execution instance is started, if any one-time initialization function has been defined, then this function will be executed. If any errors occur when running this function, then the workflow execution instance will fail to start.


Step 3: Start Segment Threads

Segments are groups of steps in a workflow separated by asynchronous or subworkflow steps. Two threads are started for each segment, one in OMQ::WM_Normal mode, and one in OMQ::WM_Recovery mode. Each segment thread is capable of processing a different workflow order data instance; in this sense segments run independently within the workflow execution instance.


OMQ::WM_Normal segments process workflow order data instances that are running without errors. Initial segments have segment ID 0 within a workflow and are always the first segments to be run.

When a workflow is started, the system event WORKFLOW_START is raised.

Note that in addition to the logic documented above, if the workflow execution instance is the first one of its workflow type to start executing, then background threads begin reading in workflow event data from the database as well.

Initial Segment Execution

In OMQ::WM_Normal mode the initial segment waits for new workflow order data instances to be submitted through the system API.

When this data is found, the workflow order data instance row is marked OMQ::StatInProgress and the segment instance row for segment ID 0 is created.

Normal (Non-Recovery) Asynchronous Segment Execution

Asynchronous segments are segments that are separated from the previous segment by an asynchronous step.

Non-recovery (OMQ::WM_Normal) asynchronous segment threads wait for data to become available for the back end of the asynchronous step that separates the segment from its predecessor. The segment thread will be notified when a row in the QUEUE_DATA table with the asynchronous step's ID is updated with status OMQ::QS_Received. At this point, the data will be extracted from the row, the row is deleted, and the asynchronous back end is executed, with the queue data passed as an argument to the back-end code.

If the back-end code completes without an error, then the previous segment status is set to OMQ::StatComplete and the new segment is started (a row is inserted in the SEGMENT_INSTANCE table with status OMQ::StatInProgress).

Otherwise, if the back-end code throws an error, the new segment will not be started (and no SEGMENT_INSTANCE row will be created for it), and the asynchronous step's and front-end segment status will be set to reflect the error's status (either OMQ::StatError or OMQ::StatRetry).

Note
If the step is an asynchronous array step, the dependent back-end segment will only be started once all elements of the array step have completed.

Normal (Non-Recovery) Subworkflow Segments

Subworkflow segments are separated from the previous segment by a subworkflow step.

Non-recovery (OMQ::WM_Normal) subworkflow segments wait for a subworkflow order data instance (a normal workflow order data instance linked to a subworkflow step through the SUBWORKFLOW_INSTANCE table) linked to the subworkflow step to reach a OMQ::StatComplete status. When this happens, the new segment is started immediately. The parent step's status is also updated if a subworkflow bound to the step receives an OMQ::StatError status. OMQ::StatError statuses are propagated up through all parent workflow order data instances in case the workflow order data instance is a subworkflow itself.

Note
If the subworkflow step is also an array step, the dependent back-end segment will only be started once all workflow order data instances bound to all elements of the array step have completed.

Normal (Non-Recovery) Workflow Synchronization Event Segments

Workflow synchronization event segments are separated from the previous segment by a workflow synchronization event step.

Non-recovery (OMQ::WM_Normal) workflow synchronization event segments wait for the dependent workflow event(s) (the segment can depend on more than one event if it is also an array step) to post and therefore the associated steps will receive a OMQ::StatComplete status. When this happens, the new segment is started immediately.

Note
If the workflow synchronization event step is also an array step, the dependent back-end segment will only be started once all events for all elements of the array step have posted and the steps receive a OMQ::StatComplete status.

Segment Recovery Processing

Recovery (OMQ::WM_Recovery) segments process segments with a OMQ::StatRetry or OMQ::StatAsyncWaiting status.

Recovery segments wait for a SEGMENT_INSTANCE row to become available meeting at least one of the following criteria:

Please note that system options for retry processing can be overridden at several levels listed here in order of priority (listed first equals highest priority):

  • by setting a Workflow Order Data Retry Trigger for the segment within the workflow logic itself
  • by setting workflow parameters set on the segment level
  • by setting workflow parameters set on the workflow execution instance level
  • by setting workflow parameters set on the workflow level
  • by setting global system options (qorus.recover_delay and qorus.async_delay).

When at least one of these criteria is true for a segment, the segment status is set to OMQ::StatInProgress and the steps without a status of OMQ::StatComplete are executed in their dependency order.

Steps that have already been executed at least once are subject to special processing. Before the step is executed, if validation code exists, the validation code is executed.

If the validation code raises an error, the step's status is set to the error's status.

If the validation code returns a status code, the status code is taken for the step's status (for example, OMQ::StatComplete will set the step immediately to OMQ::StatComplete without executing the primary step logic, OMQ::StatRetry will run the step's primary logic again, etc).

Array Step Execution

Array steps are executed like normal steps with the following exceptions: before an array step is executed, the array code is executed. The array code must return a list (an array), which will define how many times the primary step logic is executed.

Note
It is imperative to the correct execution of the system that the array code always return the same list with elements in the same order. If necessary, the array can be stored in dynamic data (if, for example, the list cannot be directly derived from static order data).

If the array code returns NOTHING or a list with no elements, a single STEP_INSTANCE row will be created and the step will be marked as OMQ::StatComplete and processing will continue normally.

The array step will continue executing even if some elements return OMQ::StatError or OMQ::StatRetry statuses until all elements of the array have been iterated.

For array steps that are subworkflow or asynchronous steps, the segment linked to the back end (for asynchronous steps) or the subworkflow completion will only be started once all elements of the array step are OMQ::StatComplete.

Error Handling

When a step raises an error, the handling depends on how the error was defined by the workflow's error function (if any).

If the error has a severity less than OMQ::ES_Major, then the error is treated as a warning. See below for valid error statuses. Otherwise, the status of the error is taken as the status of the step (must be either OMQ::StatError, the default, or OMQ::StatRetry).

If an error was not defined by the workflow's error function, then the severity is by default OMQ::ES_Major and the status OMQ::StatError.

Error Severity Levels

Level Description
OMQ::ES_Fatal Indicates that the workflow execution instance should shutdown.
OMQ::ES_Major Indicates that the workflow order data instance will be set to the error status of the error.
OMQ::ES_Minor Indicates that the error will be logged but no other action will take place.

When a workflow execution instance raises an error, the system event WORKFLOW_DATA_ERROR is raised.

Workflow Execution Instance Shutdown

When a workflow execution instance shuts down, all running segments must terminate first. In order for a running segment to terminate, it must complete processing of any steps that may be in progress. Therefore a long-running step can delay the workflow execution instance's shutdown.

After all running segments have terminated, the log file descriptor is closed, and the internal workflow execution instance object is deleted.

When a workflow is stopped, the system event WORKFLOW_STOP is raised.

Workflow Order Data Instance Cache

Workflow order data instances are cached (remain in main system memory) for the number of seconds defined by the value of the qorus.detach-delay system option, if processing is halted with any status other that OMQ::StatComplete, OMQ::StatError, OMQ::StatCanceled, or OMQ::StatBlocked (and the cache is not full as determined by the qorus.cache-max system option).

This is designed to reduce database overhead for recoveries, asynchronous, workflow synchronization event, and subworkflow event processing. Without this option, the workflow order data instance would be purged immediately, and then when an asynchronous step's back end completes, or a subworkflow completes, the system would always have to read back in and parse the workflow's data form the database, incurring additional I/O that can be spared if the data is cached.

As mentioned above, the two system options that control Qorus' use of the workflow data cache are as follows:

See also
System Options of this manual for detailed information on all system options.

When workflow metadata is reset by a call to the system API PUT /api/latest/workflows/{id_or_name}?action=reset (or omq.system.reset-workflow()) or PUT /api/latest/workflows?action=resetAll (or omq.system.reset-all-workflows()), the system event WORKFLOW_CACHE_RESET is raised.
