Qorus Integration Engine®  4.0.3.p1_git
OMQ::UserApi::Workflow::QorusEventStepBase Class Reference

The Qore base interface class for event steps. More...

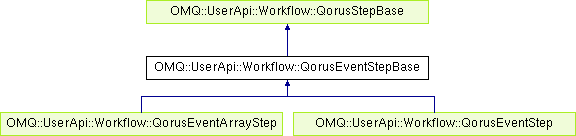

Inheritance diagram for OMQ::UserApi::Workflow::QorusEventStepBase:
OMQ::UserApi::Workflow::QorusStepBase OMQ::UserApi::Workflow::QorusEventArrayStep OMQ::UserApi::Workflow::QorusEventStep

Static Public Member Methods

static public bindEvent (string eventkey)
 binds a workflow synchronization event based on the event key to a workflow synchronization event step (type OMQ::ExecEvent) More...

static public bindEventUnposted (string eventkey)
 binds a workflow synchronization event based on the event key to a workflow synchronization event step (type OMQ::ExecEvent) only if the event has not yet been posted; if the event has already been posted, then an ALREADY-POSTED exception is raised More...

static public skipEvent ()
 skips a workflow synchronization event step More...


Detailed Description

The Qore base interface class for event steps.

Note
Qorus step constructors do not take any arguments; see Class-Based Step Constructors and Static Initialization for information about constructors and static class initialization.
See also
Workflow Synchronization Event Steps

Member Function Documentation

◆ bindEvent()

static public OMQ::UserApi::Workflow::QorusEventStepBase::bindEvent ( string  eventkey)
static

binds a workflow synchronization event based on the event key to a workflow synchronization event step (type OMQ::ExecEvent)

If this method is called twice for the same step, or if called after skipEvent(), then an exception is raised. The event type is defined when the step is defined in the workflow definition (see Event Type Tag (eventtype)); this information does not need to be supplied here; only the event key, and the event will be automatically created (if it does not exist) or found in the queue as defined by its event type.

Parameters
eventkeythe event key to bind the step to; if the event key does not already exist, then it is created in the table WORKFLOW_EVENTS and automatically tagged with its event type. A record for this step is also created in STEP_INSTANCE_EVENTS
Exceptions
WORKFLOW-EVENT-ERRORinvalid method call (multiple call, etc)
See also
Note
either bindEvent(), bindEventUnposted(), or skipEvent() must be called in a workflow synchronization event step

◆ bindEventUnposted()

static public OMQ::UserApi::Workflow::QorusEventStepBase::bindEventUnposted ( string  eventkey)
static

binds a workflow synchronization event based on the event key to a workflow synchronization event step (type OMQ::ExecEvent) only if the event has not yet been posted; if the event has already been posted, then an ALREADY-POSTED exception is raised

If this method is called twice for the same step, or if called after skipEvent(), then an exception is raised. The event type is defined when the step is defined in the workflow definition (see Event Type Tag (eventtype)); this information does not need to be supplied here; only the event key, and the event will be automatically created (if it does not exist) or found in the queue as defined by its event type.

Parameters
eventkeythe event key to bind the step to; if the event key does not already exist, then it is created in the table WORKFLOW_EVENTS and automatically tagged with its event type. A record for this step is also created in STEP_INSTANCE_EVENTS
Exceptions
ALREADY-POSTEDthe given event has already been posted
WORKFLOW-EVENT-ERRORinvalid method call (multiple call, etc)
See also
Note
either bindEvent(), bindEventUnposted(), or skipEvent() must be called in a workflow synchronization event step

◆ skipEvent()

static public OMQ::UserApi::Workflow::QorusEventStepBase::skipEvent ( )
static

skips a workflow synchronization event step

If this method is called from any other step type, or if called after bindEvent(), then an exception is raised. If called twice for the same step a message is logged, but no exception is raised.

Exceptions
WORKFLOW-EVENT-ERRORinvalid method call (multiple call, etc)
See also
Note
either bindEvent(), bindEventUnposted(), or skipEvent() must be called in a workflow synchronization event step

The documentation for this class was generated from the following file:
