OMQ::AbstractServiceHttpHandler Class Reference

this class is used to customize and control the behavior of the Qorus HTTP server as it redirects URLs to services More...

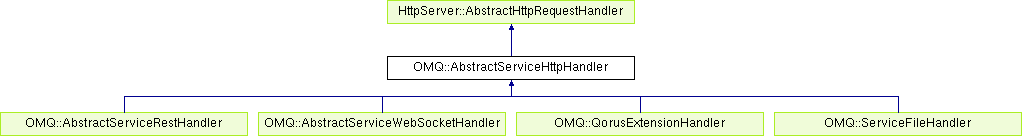

Inheritance diagram for OMQ::AbstractServiceHttpHandler:
HttpServer::AbstractHttpRequestHandler OMQ::AbstractServiceRestHandler OMQ::AbstractServiceWebSocketHandler OMQ::QorusExtensionHandler OMQ::ServiceFileHandler

Public Member Methods

OMQ::ThreadLocalData otld ()
 thread-local data to add before calling handleRequest()

 constructor (string n_path, *softlist< auto > n_content_type, *softlist< auto > n_special_headers, HttpServer::AbstractAuthenticator n_auth=new DefaultQorusRBACAuthenticator(), bool n_isregex=True)
 creates the object with the given arguments More...

hash< auto > getServiceInfo ()
 returns a hash with info about the linked service

 addListener (hash< HttpServer::HttpListenerOptionInfo > opt)
 adds a listener from a bind string in the format: "address:port" (ex: "192.168.20.1:8011") More...

 addListener (softstring bind, hash< HttpServer::HttpListenerOptionInfo > opt)
 adds a listener from a bind string in the format: "address:port" (ex: "192.168.20.1:8011") More...

 addListener (softstring bind, *string cert_path, *string key_path, *string key_password, *hash< HttpServer::HttpListenerOptionInfo > opt)
 adds a listener from a bind string in the format: "address:port" (ex: "192.168.20.1:8011") More...

 addListener (softstring bind, *Qore::SSLCertificate cert, *Qore::SSLPrivateKey key, *hash< HttpServer::HttpListenerOptionInfo > opt)
 adds a listener from a bind string in the format: "address:port" (ex: "192.168.20.1:8011") More...

 addListeners (softlist< auto > l)
 adds a list of listeners; each element should be either a bind string in the format: "address:port" (ex: "192.168.20.1:8011") or an integer port, meaning to bind on all interfaces on that port More...

final *hash< auto > saveThreadLocalData ()
 called before handleRequest() any data returned here will be given to restoreThreadLocalData() after the handleRequest() call

final restoreThreadLocalData (*hash< auto > data)
 called after handleRequest() with any data returned from saveThreadLocalData()

 log (int ll, string fmt)
 logs to the service log file

 setUserIndexInfo (string heading, string title, string url)
 sets heading and title for user HTTP services

 clearUserIndexInfo ()
 clears heading and title into for user HTTP services More...

hash< HttpResponseInfo > handleRequest (HttpListenerInterface listener, Socket s, hash< auto > cx, hash< auto > hdr, *data body)
 this method ensures that thread-local data is set properly

hash< auto > handleRequest (hash< auto > cx, hash< auto > hdr, *data body)
 this method calls handleRequestImpl() to service the request, if handleRequestImpl() returns NOTHING, then it tries to automatically serve service file resources or serve the default resource if no resource can be matched More...

string getRequestPath (string hpath)
 returns the request path with the common leading part of the URL stripped off and also any URI query argument stripped off

*hash< auto > handleRequestImpl (reference< hash< auto >> cx, hash< auto > hdr, *data body)
 this method is called by this class's handleRequest() before trying to service the request automatically based on service file resources More...

 setDefaultResource (string name)
 sets the default service file resource to be rendered when the request is not matched to a resource and handleRequestImpl() does not return a response

private AbstractStreamRequest getStreamRequestImpl (HttpListenerInterface listener, Socket s, hash< auto > cx, hash< auto > hdr, *data body)
 returns the AbstractStreamRequest object for handling chunked requests

private AbstractServiceStream getServiceStreamRequestImpl (Socket s, hash< auto > cx, hash< auto > hdr, *data body)
 returns the AbstractStreamRequest object for handling chunked requests


Static Public Member Methods

static AbstractServiceStream getServiceStreamRequestExtern (AbstractServiceHttpHandler hr, Socket s, hash< auto > cx, hash< auto > hdr, *data body)
 for calling the getServiceStreamRequestImpl() externally


Public Attributes

string url
 The path string or regex to match incoming requests.

*softlist< auto > content_type
 the content-type to check

*softlist< auto > special_headers
 list of special headers; if a request has any of these HTTP headers, then the requests will match this handler

list< auto > listeners = ()
 list of listener info; do not write to this list directly, use AbstractServiceHttpHandler::addListener() instead (the internal format may change)

code svcc
 a closure that allows specific Service methods to be called

code svc_method_call
 a closure that allows any Service methods to be called

*string utype
 the type/heading for user HTTP services

*string utitle
 the title for user HTTP services

*string uurl
 the URL for user HTTP services

bool isregex
 if the path is a regex or a string

*string default_resource
 the default resource to serve

hash< auto > svcinfo
 service info hash


Detailed Description

this class is used to customize and control the behavior of the Qorus HTTP server as it redirects URLs to services

If any listeners are added to the AbstractServiceHttpHandler object with addListener(), then the URL set in the object is only bound to the new listeners specified in this object. Otherwise, the URL is bound to all listeners in the system HTTP server. Override the handleRequestImpl() method to handle HTTP requests or received POSTed data.

Member Function Documentation

◆ addListener() [1/4]

OMQ::AbstractServiceHttpHandler::addListener ( hash< HttpServer::HttpListenerOptionInfo opt)

adds a listener from a bind string in the format: "address:port" (ex: "192.168.20.1:8011")

If any listeners are added to the AbstractServiceHttpHandler object, then the URL set in the object is only bound to the new listeners specified in this object

Parameters
optHTTP listener parameters
Exceptions
ADDLISTENER-ERRORkey_path argument provided, but no certificate provided
Since
Qorus 4.0.3

◆ addListener() [2/4]

OMQ::AbstractServiceHttpHandler::addListener ( softstring  bind,
hash< HttpServer::HttpListenerOptionInfo opt
)

adds a listener from a bind string in the format: "address:port" (ex: "192.168.20.1:8011")

If any listeners are added to the AbstractServiceHttpHandler object, then the URL set in the object is only bound to the new listeners specified in this object

Parameters
bindthe address:port string or port number to bind the listener to
optHTTP listener parameters
Exceptions
ADDLISTENER-ERRORkey_path argument provided, but no certificate provided
Since
Qorus 4.0.3

◆ addListener() [3/4]

OMQ::AbstractServiceHttpHandler::addListener ( softstring  bind,
*string  cert_path,
*string  key_path,
*string  key_password,
*hash< HttpServer::HttpListenerOptionInfo opt
)

adds a listener from a bind string in the format: "address:port" (ex: "192.168.20.1:8011")

If any listeners are added to the AbstractServiceHttpHandler object, then the URL set in the object is only bound to the new listeners specified in this object

Parameters
bindthe address:port string or port number to bind the listener to
cert_pathoptional path to an X.509 certificate file
key_pathoptional path to a private key file for an X.509 certificate
key_passwordoptional password to the private key
optHTTP listener parameters
Exceptions
ADDLISTENER-ERRORkey_path argument provided, but no certificate provided

◆ addListener() [4/4]

OMQ::AbstractServiceHttpHandler::addListener ( softstring  bind,
*Qore::SSLCertificate  cert,
*Qore::SSLPrivateKey  key,
*hash< HttpServer::HttpListenerOptionInfo opt
)

adds a listener from a bind string in the format: "address:port" (ex: "192.168.20.1:8011")

If any listeners are added to the AbstractServiceHttpHandler object, then the URL set in the object is only bound to the new listeners specified in this object

Parameters
bindthe address:port string or port number to bind the listener to
certoptional X.509 certificate object
keyoptional private key for an X.509 certificate
Exceptions
ADDLISTENER-ERRORkey argument provided, but no certificate provided

◆ addListeners()

OMQ::AbstractServiceHttpHandler::addListeners ( softlist< auto >  l)

adds a list of listeners; each element should be either a bind string in the format: "address:port" (ex: "192.168.20.1:8011") or an integer port, meaning to bind on all interfaces on that port

If any listeners are added to the AbstractServiceHttpHandler object, then the URL set in the object is only bound to the new listeners specified in this object

Parameters
llist of listeners; each element should be a hash with the following keys:
  • "bind": (required) a bind string in the format: "address:port" (ex: "192.168.20.1:8011") or an integer port, meaning to bind on all interfaces on that port
  • "cert_file": (optional) path to an X.509 certificate file (do not include both "cert_file" and "cert")
  • "cert": (optional) a Qore::SSLCertificate object (do not include both "cert_file" and "cert")
  • "key_file": (optional) path to a private key file for an X.509 certificate (do not include both "key_file" and "key")
  • "key": (optional) a Qore::SSLPrivateKey object (do not include both "key_file" and "key")
Exceptions
ADDLISTENERS-ERRORinvalid element in argument list

◆ clearUserIndexInfo()

OMQ::AbstractServiceHttpHandler::clearUserIndexInfo ( )

clears heading and title into for user HTTP services

Since
Qorus 4.0

◆ constructor()

OMQ::AbstractServiceHttpHandler::constructor ( string  n_path,
*softlist< auto >  n_content_type,
*softlist< auto >  n_special_headers,
HttpServer::AbstractAuthenticator  n_auth = new DefaultQorusRBACAuthenticator(),
bool  n_isregex = True
)

creates the object with the given arguments

Parameters
n_paththe regular expression for the path to match on incoming requests (ex "^my-service(\?|/|$)"); note see the isregex parameter to treat this argument as a URL root instead of a regular expression
n_content_typean optional list of Content-Types to match on incoming requests
n_special_headersan optional list of special headers to check that will indicate a match with this handler
n_auththe AbstractAuthenticator for the object; if no argument is passed, then the system RBAC authenticator is used; meaning that Qorus application users are required to connect, and the users must have the OMQ::QR_LOGIN role to connect as well
n_isregexif True, then the path argument is treated as a regular expression pattern, otherwise it is treated as a literal URL root; it's normally recommended to set this argument to False so that service file resources can be matched and served; this method has the default value True only for backwards compatibility
Example:
class MyHttpHandler inherits OMQ::AbstractServiceHttpHandler {
constructor() : OMQ::AbstractServiceHttpHandler("my-service", "text/tab-separated-values", NOTHING, NOTHING, False) {
}
}

◆ handleRequest()

hash<auto> OMQ::AbstractServiceHttpHandler::handleRequest ( hash< auto >  cx,
hash< auto >  hdr,
*data  body
)

this method calls handleRequestImpl() to service the request, if handleRequestImpl() returns NOTHING, then it tries to automatically serve service file resources or serve the default resource if no resource can be matched

Parameters
cxcall context hash; this hash will have the following keys:
hdrincoming header hash; all keys will be converted to lower-case, additionally the following keys will be present:
  • method: the HTTP method received (ie "GET", "POST", etc)
  • path: the HTTP path given in the request, after processing by Qore::decode_url()
  • http_version: the HTTP version number in the request (either "1.0" or "1.1")
bodymessage body, if any
Returns
a hash with the following keys:
  • "code": the HTTP return code (see HttpServer::HttpCodes)
  • "body": the message body to return in the response
  • "close": (optional) set this key to True if the connection should be unconditionally closed when the handler retu rns
  • "hdr": (optional) set this key to a hash of extra header information to be returned with the response

The following keys are added to the cx argument when calling handleRequestImpl():

  • resource_path: the relative path without any query arguments and with the URL root stripped off (if the request was matched by the URL root, otherwise this will be the request path with any URI query arguments removed)
  • url_root: the root URL
  • isregex: if the url_root string is a regular expression or not (this is always False when this class is used)
  • hdr: this is added to the cx argument directly from the hdr argument, however it also includes the "params" key which holds the URI query parameters as returned in the params key from HttpServer::parse_uri_query()

To override the logic in this method and handle requests directly, override this method in your subclass.

If handleRequestImpl() returns NOTHING and no resource can be matched and served, then this method returns a 501 error code

◆ handleRequestImpl()

*hash<auto> OMQ::AbstractServiceHttpHandler::handleRequestImpl ( reference< hash< auto >>  cx,
hash< auto >  hdr,
*data  body
)

this method is called by this class's handleRequest() before trying to service the request automatically based on service file resources

If this method returns a value; then the value is used to serve the request directly, otherwise, if it returns NOTHING, Qorus will try to match cx.resource_path with a service file resource and serve it automatically.

Example:
class MyHttpHandler inherits OMQ::AbstractServiceHttpHandler {
constructor() : OMQ::AbstractServiceHttpHandler("my-service", "text/tab-separated-values", NOTHING, NOTHING, False) {
}
*hash<auto> handleRequestImpl(hash<auto> cx, hash<auto> hdr, *data body) {
logDebug("message received: hdr=%y", hdr);
# similate a successful POST, otherwise serve service resources automatically
if (cx.method == "POST")
return ("code": 200, "body": "OK");
}
}
Parameters
cxcall context hash; this hash will have the following keys:
  • socket: the bind address used to bind the listener ("socket-info" provides more detailed information)
  • socket-info: a hash of socket information for the listening socket (as returned by Qore::Socket::getSocketInfo())
  • peer-info: a hash of socket information for the remote socket (as returned by Qore::Socket::getPeerInfo())
  • url: a hash of broken-down URL information (as returned from Qore::parse_url())
  • id: the unique HTTP connection ID
  • listener-id: the HTTP server listener ID (see HttpServer::HttpServer::getListenerInfo())
  • user: the current RBAC username (if any)
  • resource_path: the resource path without any query arguments and with the URL root stripped off (if the request was matched by the URL root, otherwise this will be the request path with any URI query arguments removed)
  • url_root: the root URL
  • isregex: if the url_root string is a regular expression or not
  • hdr: this is a copy of the hdr argument, however it also includes the "params" key which holds the URI query parameters as returned in the params key from HttpServer::parse_uri_query()
hdrincoming header hash; all keys will be converted to lower-case, additionally the following keys will be present:
  • method: the HTTP method received (ie "GET", "POST", etc)
  • path: the HTTP path given in the request, after processing by Qore::decode_url()
  • http_version: the HTTP version number in the request (either "1.0" or "1.1")
  • params: holds the URI query parameters as returned in the params key from HttpServer::parse_uri_query()
bodymessage body, if any
Returns
eother NOTHING, meaning that Qorus should try to match cx.resource_path with a service file resource and serve it automaticaly, or a hash with the following keys:
  • "code": the HTTP return code (see HttpServer::HttpCodes)
  • "body": the message body to return in the response
  • "close": (optional) set this key to True if the connection should be unconditionally closed when the handler returns
  • "hdr": (optional) set this key to a hash of extra header information to be returned with the response
Note
  • this method has the following additional keys in the cx hash: resource_path, url_root, and isregex
  • the default implementation simply returns NOTHING for all requests; reimplement this method in a subclass to provide the required functionality
  • for remote services running in independent qsvc processes, no non-serializable data types can be added to cx, or the call will fail

The documentation for this class was generated from the following file:
