Qorus Integration Engine®  4.0.3.p1_git
OMQ::AbstractParallelWriteStream Class Referenceabstract

this class handles stream classes that use an I/O thread to send data More...

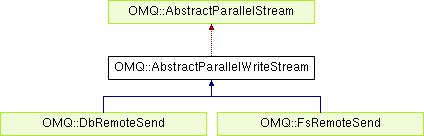

Inheritance diagram for OMQ::AbstractParallelWriteStream:
OMQ::AbstractParallelStream OMQ::DbRemoteSend OMQ::FsRemoteSend

Public Member Methods

 destructor ()
 waits for any I/O to complete and then returns

nothing cleanup ()
 called when the thread resource is still allocated and the thread exits or one of Qore::throw_thread_resource_exceptions() or Qore::throw_thread_resource_exceptions_to_mark() is called

 disconnect ()
 Disconnects the connection.

 flush ()
 flushes all remote I/O, signals the I/O thread to terminate and waits for confirmation, then checks for background I/O errors, in which case an exception is thrown in this thread More...

private bool terminateIoWaitIntern (string action)
 flushes all remote I/O, signals the I/O thread the terminate and waits for confirmation, then checks for background I/O errors, in which case an exception is thrown in this thread More...


Private Member Methods

abstract terminateIoWait (string action)
 flushes all remote I/O, signals the I/O thread the terminate and waits for confirmation, then checks for background I/O errors, in which case an exception is thrown in this thread

abstract stopIoThreadImpl ()
 signal the I/O thread to top sending data

abstract bool submitImpl ()
 puts data on the queue for sending in the background I/O thread More...


Additional Inherited Members

- Private:Internal Member Methods inherited from OMQ::AbstractParallelStream
 destructor ()
 wait for any I/O in progress to complete

nothing cleanupBase ()
 called by child classes when the thread resource is still allocated and the thread exits or one of Qore::throw_thread_resource_exceptions() or Qore::throw_thread_resource_exceptions_to_mark() is called

private waitIoComplete ()
 waits for the I/O thread to complete and returns

private markIoInProgress ()
 marks the current connection as in progress; must be already checked beforehand that it's not in progress

private markIoComplete ()
 performs thread cleanup on the background I/O thread if any is registered and running

OMQ::StreamInfo getInfo ()
 returns performance information about the stream

private checkError (string cmd)
 checks for an error in the background send thread; if there is one, then rethrows the exception in the main application / data thread

private startStream ()
 opens the remote transaction by calling startStreamImpl() and starts the background I/O socket thread More...

private socketThread (*ThreadLocalData my_tld)
 sets up thread-local data if possible and calls socketThreadImpl() that implements the background socket I/O for the object

private abortIo (string reason)
 signals the end of queue operations

private bool abortIoWait (string reason)
 signals the end of queue operations and waits until the socket thread terminates More...

private beginTransaction (OMQ::DbStreamConfig m_config)
 starts or continues a remote transaction

private commit (OMQ::DbStreamConfig m_config)
 commits a remote transaction

private rollback (OMQ::DbStreamConfig m_config)
 rolls back a remote transaction

abstract OMQ::StreamConfig config ()
 returns the configuration object

Qore::Thread::Counter cnt ()
 confirmation counter for the socket I/O thread

OMQ::StreamInfo m_info ()
 stream information

abstract socketThreadImpl ()
 this method implements the background thread that handles the actual DataStream socket sends

abstract startStreamImpl ()
 opens the remote transaction before starting the background I/O socket thread

- Static Private:Internal Member Methods inherited from OMQ::AbstractParallelStream
static staticCleanup ()
 performs static thread resource cleanup on I/O thread resources

static checkStream (QorusSystemRestHelper helper, string op)
 checks if there is a stream operation running in the background, if so, a user-friendly exception is thrown

static beginTransaction (QorusSystemRestHelper remote, string datasource, *timeout timeout_ms, *reference info)
 starts a transaction in a remote datasource More...

- Private:Internal Attributes inherited from OMQ::AbstractParallelStream
const DO_DISCONNECT = True
 A constant for rollback() methods to perform real disconnect.

const DONT_DISCONNECT = False
 A constant for rollback() methods to keep the network connection alive.

Qore::Thread::Queue dataq
 Queue for the socket I/O thread.

*hash thread_ex
 exception info for send thread to communicate errors to the primary data thread

string objid
 stream object identifier

const StreamTerminatedError = "STREAM-TERMINATED"
 stream terminated error

const ThreadKey = "_STREAM_"
 thread-local data key


Detailed Description

this class handles stream classes that use an I/O thread to send data

such classes have the following characteristics:

  • they can abort the I/O at any time without corrupting the socket data; therefore when aborting the I/O thread, they don't need to disconnect
  • the destructor waits until the I/O thread completes and do not disconnect

Member Function Documentation

◆ flush()

OMQ::AbstractParallelWriteStream::flush ( )

flushes all remote I/O, signals the I/O thread to terminate and waits for confirmation, then checks for background I/O errors, in which case an exception is thrown in this thread

use this method when a remote operation should be continued in the same HTTP connection, for example

◆ submitImpl()

abstract bool OMQ::AbstractParallelWriteStream::submitImpl ( )
privatepure virtual

puts data on the queue for sending in the background I/O thread

Returns
True if the I/O thread is running, False if not

Implemented in OMQ::FsRemoteSend, and OMQ::DbRemoteSend.

◆ terminateIoWaitIntern()

private bool OMQ::AbstractParallelWriteStream::terminateIoWaitIntern ( string  action)

flushes all remote I/O, signals the I/O thread the terminate and waits for confirmation, then checks for background I/O errors, in which case an exception is thrown in this thread

called by terminateIoWait()

Returns
True if the I/O thread was terminated due to this call, False if it was already terminated

The documentation for this class was generated from the following file:
